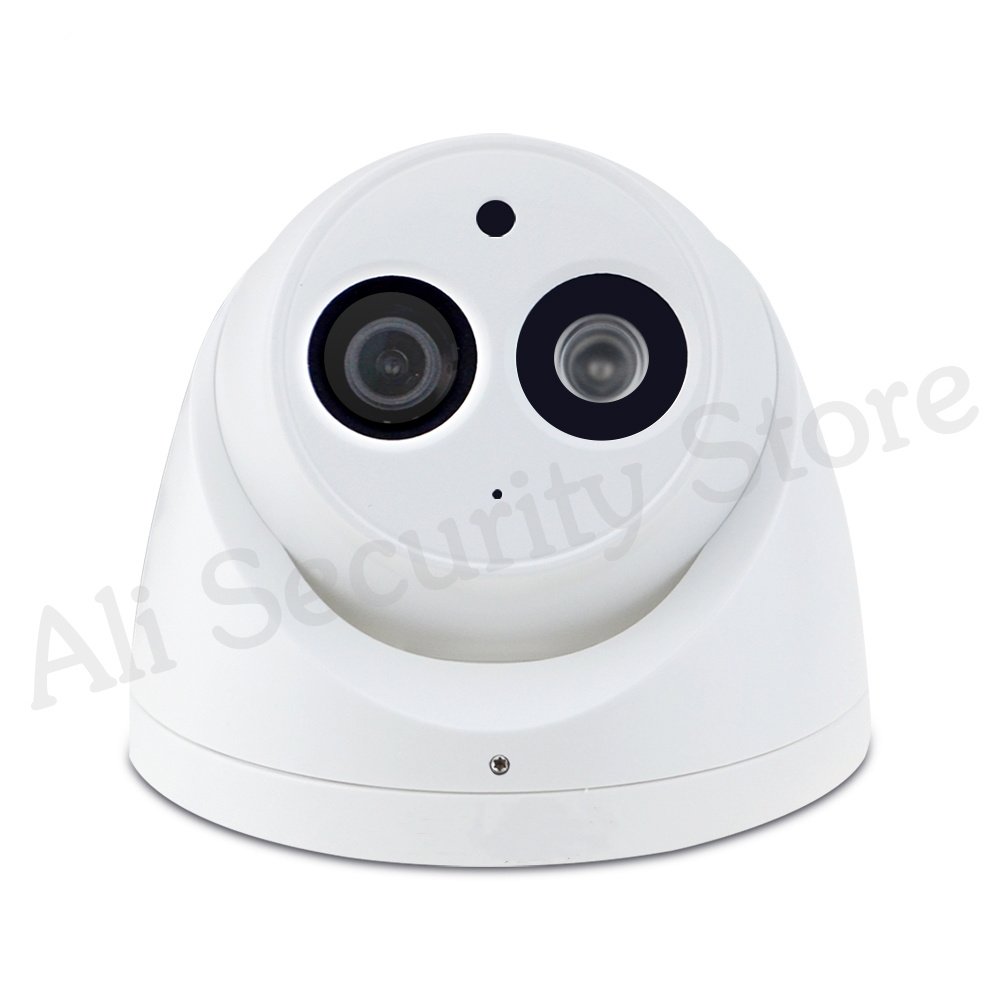

Dahua IPC-HDW4631C-A 6MP HD POE Network Mini Dome IP Camera Metal Case Built-in MIC CCTV 30M IR Update from IPC-HDW4433C-A
| | | | |
| | | | |
1.This camera can be provide 'with logo' or 'without logo' for different demand , all are original , and same model same function same software .
2.New Policy: If you order ≥ 4pcs,we could send items via express shipping for free (or ship separate) .
3.As different country has different shipment rules.We will choose the shipment method for you according to our experience if the rules changed . Besides,if you are not satisfied with the shipment method ,Please contact us if we can get a better shipment method .
4.Please contact me if need many pieces .we will give you a good price and service .
5.Please DO NOT update this camera .
Dahua CCTV CameraDahua-IPC-HDW4631C-A
1.1/2.9' 6Megapixel progressive scan STARVIS? CMOS
2. H.265&H.264&MJPEG triple-stream encoding
3. 20fps@6MP(3072x2048),25/30fps@4MP(2688x1520)
4. Smart detection supported
5. WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
6. Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
7. 2.8mm fixed lens (3.6mm optional)
8. Built-in Mic
9. Max. IR LEDs Length 30m
10. PoE
11. Language:English,Russian,Spanish
Model | Dahua-IPC-HDW4631C-A |
1.Camera | |
Image Sensor : | 1/2.9' 6Megapixel progressive scan CMOS |
Effective Pixels : | 3072(H) x 2048(V) |
Scanning System : | Progressive |
Electronic Shutter Speed : | Auto/Manual, 1/3~1/100000s |
Minimum Illumination : | 0.002Lux( Color) |
0.0002( black/white) | |
0Lux(IR on) | |
S/N Ratio : | More than 56dB |
IR Distance : | Distance up to 30m |
IR On/Off Control : | Auto/ Manual |
2.Lens | |
Lens Type : | Fixed |
Mount Type : | Board-in |
Focal Length : | 2.8mm (3.6mm 6mm optional) |
Max. Aperture : | F2.5/F2.2/F2.0 |
Angle of View : | 2.8mm:H: 99° V: 69.4° 3.6mm:H: 70° V: 48° 6mm:H: 47.34° V: 33.75° |
Focus Control : | Fixed |
Close Focus Distance : | 0.8m (1.2m,3.9m) |
3.Intelligence | |
IVS : | Tripwire, Intrusion, Object Abandoned/Missing |
Advanced Intelligent Functions : | Face Detection |
4.Video | |
Compression : | H.265/H.264/MJPEG |
Streaming Capability : | 3 Streams |
Resolution : | 50HZ:Main (3072×2048@20fps),Sub(704×576@20fps),Third(1280×720@6fps); Main(2592×1944@25fps),Sub(704×576@25fps),Third(1280×720@4fps) 60Hz: Main(3072×2048@20fps),Sub(704×480@20fps),Third(1280×720@7fps); Main(2688×1520@30fps),Sub(704×480@30fps),Third(1280×720@10fps)" |
Bit Rate : | 14K ~ 10240Kbps |
Day/Night : | Auto(ICR) / Color / B/W |
BLC Mode : | BLC / HLC / WDR(120dB) |
White Balance : | Auto/Natural/Street Lamp/Outdoor/Manual |
Gain Control : | Auto/Manual |
Noise Reduction : | 3D DNR |
Motion Detetion : | Off / On (4 Zone, Rectangle) |
Region of Interest : | Off / On (4 Zone) |
Mirror : | Off / On |
Privacy Masking : | Off / On (4 Area, Rectangle) |
5.Audio | |
Compression : | G.711a/ G.711Mu/ AAC/ G.726 |
6.Network | |
Ethernet : | RJ-45 (10/100Base-T) |
Protocol : | HTTP; TCP; ARP; RTSP; RTP; UDP; SMTP; |
FTP; DahuaCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; | |
UPnP;NTP;IGMP; SNMP | |
Interoperability : | , PSIA, CGI;GB/T28181 |
Max. User Access : | 10 Users /20 Users |
Edge Storage : | NAS |
Local PC for instant recording | |
Web Viewer : | IE, Chrome, Firefox, Safari |
Management Software : | Smart PSS, DSS, Easy4ip |
Smart Phone : | IOS, Android |
7.Interface | |
Audio Interface : | Built-in Mic |
8.Electrical | |
Power Supply : | DC12V, PoE (802.3af)(Class 0) |
Power Consumption : | <4.8W |
9.Environmental | |
Operating Conditions : | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
Strorage Conditions : | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
10.Construction | |
Casing : | Metal |
Dimensions : | Φ106mm×93.7mm (4.17'×3.69') |
Net Weight : | 0.47Kg (1.04lb) |
Gross Weight : | 0.65Kg (1.43lb) |
